Direct heat utilization of geothermal energy

Page
3

1000 years of use (Romans)

60 resorts

460,000 patients/year

USA – used by Indians for 10,000 years

The “Great Spirit”

Neutral ground

Recuperated from battle

Today – 115 major geothermal spas

Hot Springs National Park, Arkansas

Slide 27

Slide 28

Slide 29

Slide 30

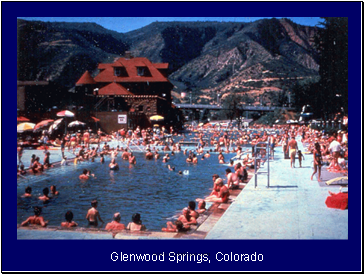

Glenwood Springs, Colorado

Slide 31

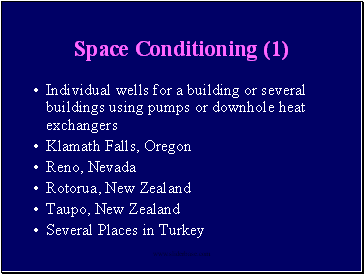

Space Conditioning

Individual wells for a building or several buildings using pumps or downhole heat exchangers

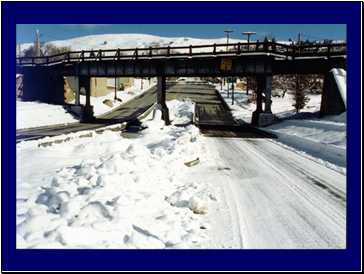

Klamath Falls, Oregon

Reno, Nevada

Rotorua, New Zealand

Taupo, New Zealand

Several Places in Turkey

Slide 32

Slide 33

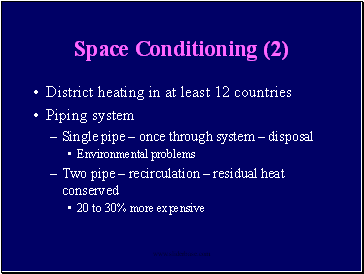

Space Conditioning (2)

District heating in at least 12 countries

Piping system

Single pipe – once through system – disposal

Environmental problems

Two pipe – recirculation – residual heat conserved

20 to 30% more expensive

Slide 34

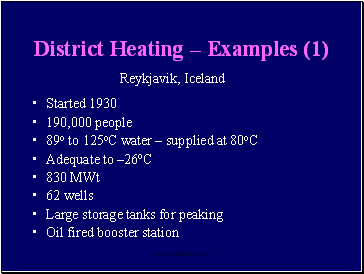

District Heating – Examples

Started 1930

190,000 people

89o to 125oC water – supplied at 80oC

Adequate to –26oC

830 MWt

62 wells

Large storage tanks for peaking

Oil fired booster station

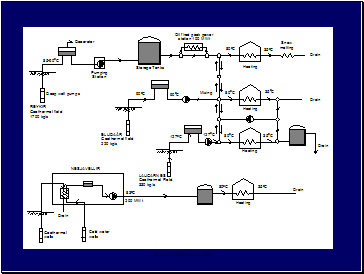

Reykjavik, Iceland

Slide 35

Slide 36

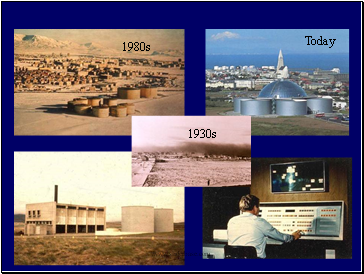

1930s

1980s

Today

Slide 37

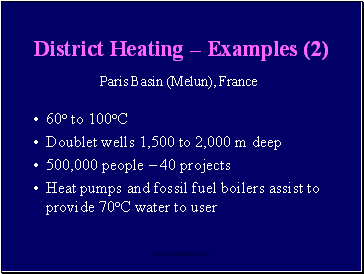

District Heating – Examples (2)

60o to 100oC

Doublet wells 1,500 to 2,000 m deep

500,000 people – 40 projects

Heat pumps and fossil fuel boilers assist to provide 70oC water to user

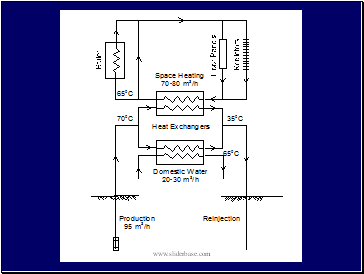

Paris Basin (Melun), France

Slide 38

Slide 39

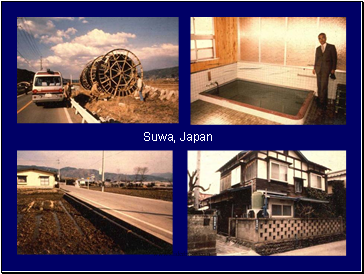

Suwa, Japan

Slide 40

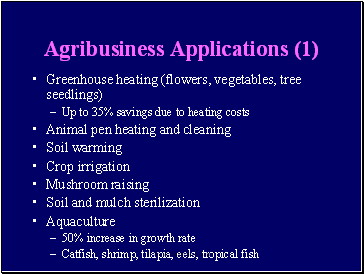

Agribusiness Applications

Greenhouse heating (flowers, vegetables, tree seedlings)

Up to 35% savings due to heating costs

Animal pen heating and cleaning

Soil warming

Crop irrigation

Mushroom raising

Soil and mulch sterilization
