They transferred them to medium containing N14.

After allowing cells to grow in the presence of N14 for varying periods of time, the DNA was extracted and analyzed in CsCl equilibrium density gradient.

The results of their expt. are only consistent with semiconservative model.

Slide 49

All the DNA isolated from cells after one generation of growth in medium containing N14 had a density halfway between the densities of ‘heavy’ and ‘light’ DNA.

All the DNA isolated from cells after one generation of growth in medium containing N14 had a density halfway between the densities of ‘heavy’ and ‘light’ DNA.

This intermediate referred to as ‘hybrid’

After 2 generations of growth in medium containing N14 , half of the DNA was of “hybrid” and half was “light”

This prove Semiconservative

Slide 50

DNA - An overview

Slide 51

DNA - An overview

Slide 52

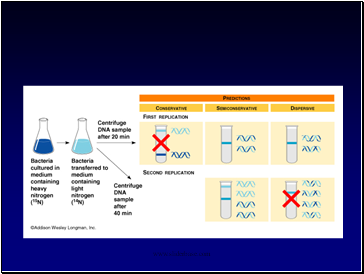

Models of dna replication meselson and stahl expt.

Models of dna replication meselson and stahl expt.

Slide 53

Cairn’s Experiment

Cairn’s Experiment

The visualization of replicating chromosome was first accomplished by J. Cairns in 1963 using the technique called autoradiography.

Autoradiography is a method of detecting and localizing radioactive isotopes in macromolecules by exposure to photographic emulsion that is sensitive to low energy radiation.

Autoradiography is particularly useful in studying DNA metabolism because DNA can be specifically labeled by growing cells on [H3]thymidine, the tritiated deoxyribonucleoside of thymidine.

Thymidine is incorporated exclusively into DNA; it is not present in any other major component of the cell.

Slide 54

Cairns grew E.coli cells in medium containing [H3]thymidine for varying period of time.

Cairns grew E.coli cells in medium containing [H3]thymidine for varying period of time.

He lysed the cell very gently so as not to break the chromosomes and he carefully collected the chromsomes on membrane filter.

These filters are affixed to glass slides, coated with emulsion sensitive to β – particles (the low energy electrons emitted during decay of tritium) and store in dark for radioactive decays.

The autoradiograph observed when the films were developed.

It showed that the chromosomes of E.coli are circular structures that exist as θ shaped intermediates during replication.

Slide 55

John Cairns

John Cairns

Cairns then isolated the chromosomes by lysing the cells very very gently and placed them on an electron micrograph (EM) grid which he exposed to X-ray film for two months.

Slide 56

These autoradiograph further indicated that the unwinding of the complementary strands and their semiconservative replication occurs simultaneously or closely coupled.

These autoradiograph further indicated that the unwinding of the complementary strands and their semiconservative replication occurs simultaneously or closely coupled.
