Rutherford Scattering

Page
1

Slide 1

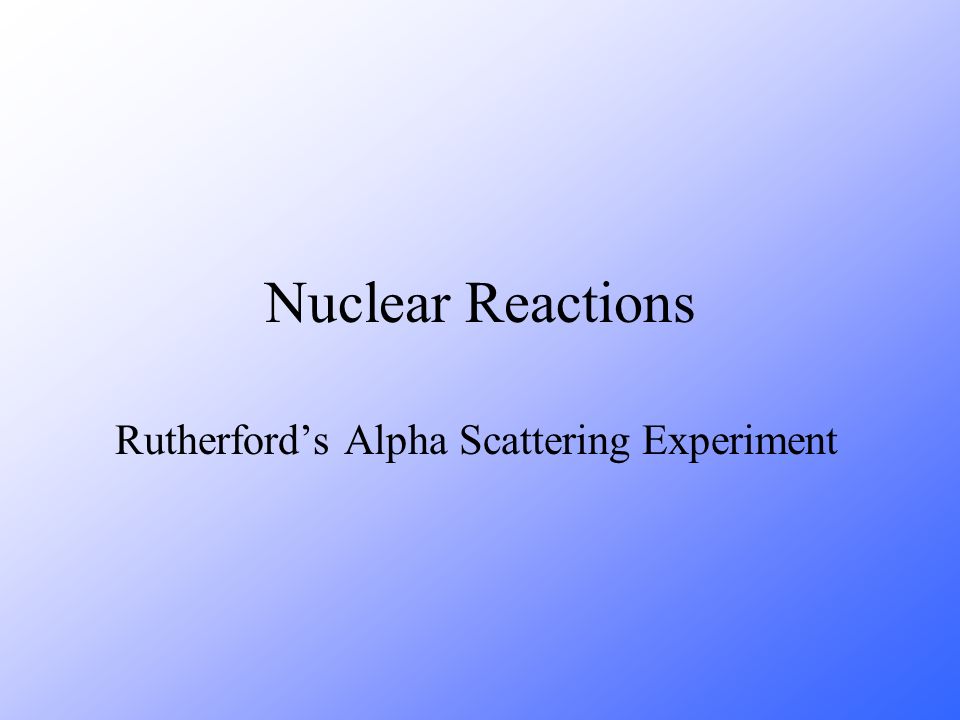

Nuclear Reactions

Rutherford’s Alpha Scattering Experiment

Slide 2

CS 4.1

Describe how Rutherford showed that:

(a) The nucleus had a relatively small diameter compared with that of the atom.

(b) Most of the mass of the atom is concentrated in the nucleus.

Slide 3

In the beginning……

In the early days of atomic theory, many physicists tried to explain the model of an atom.

In 1902, Ernest Rutherford showed that alpha particles emitted from the decay of unstable radioactive materials were electrically charged helium nuclei travelling at high speed.

In 1909, Rutherford used alpha particles to investigate the composition of gold foil (i.e. to explain the model of an atom).

Slide 4

Aim

To investigate the composition of gold foil using alpha particles (i.e. to explain the model of an atom).

Slide 5

Apparatus

Rutherford’s alpha scattering apparatus:

Slide 6

Procedure

Rutherford fired alpha particles through a piece of gold foil and used a zinc sulphide detector to detect the scattered alpha particles and their location.

Slide 7

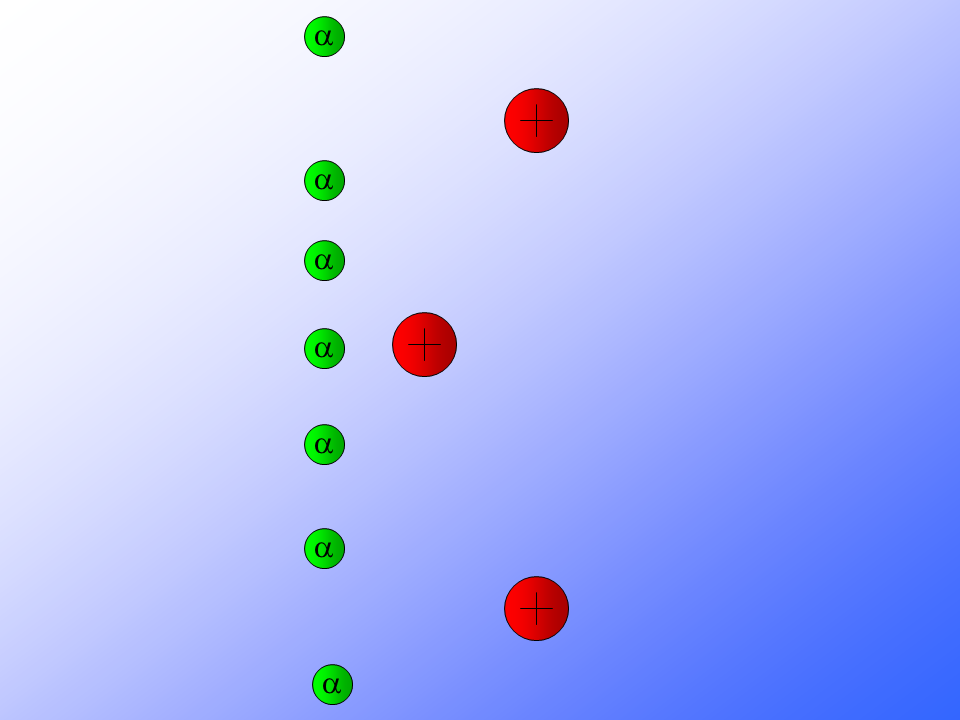

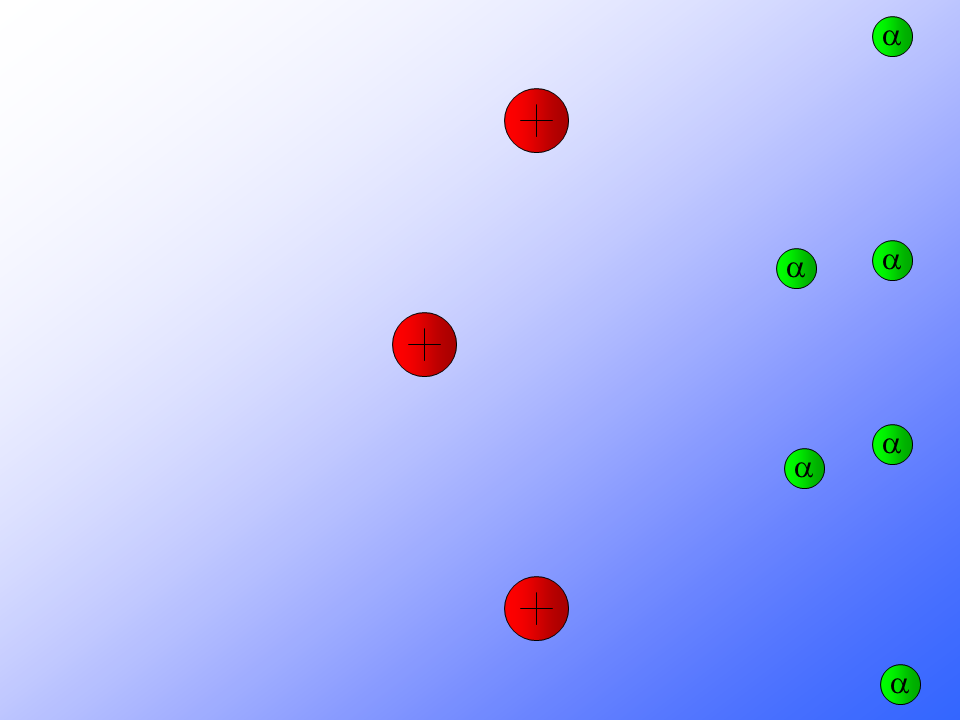

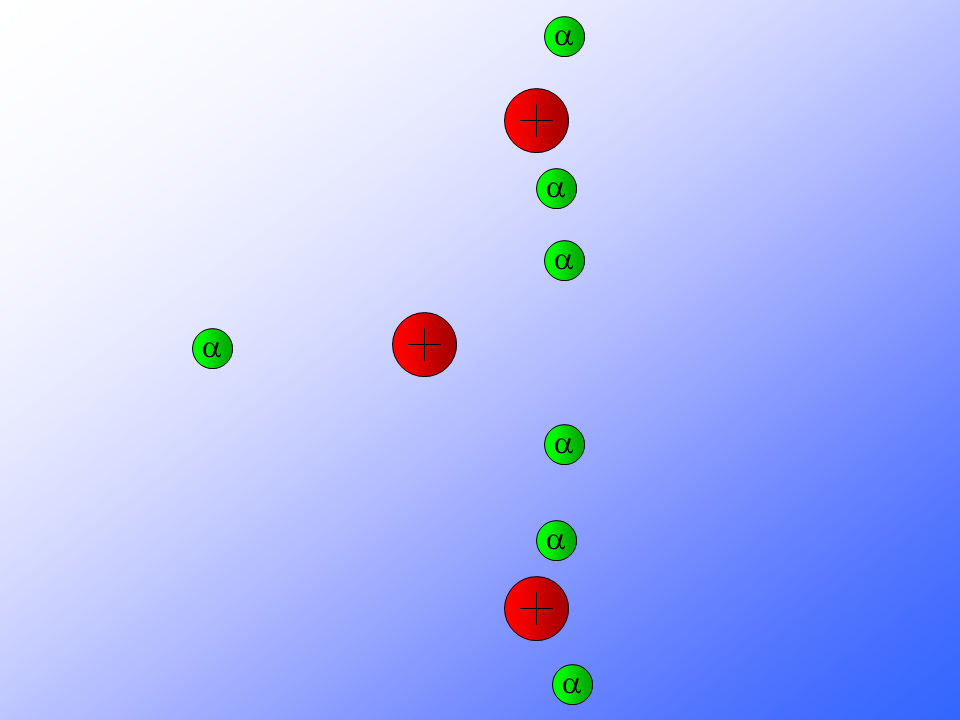

Results…

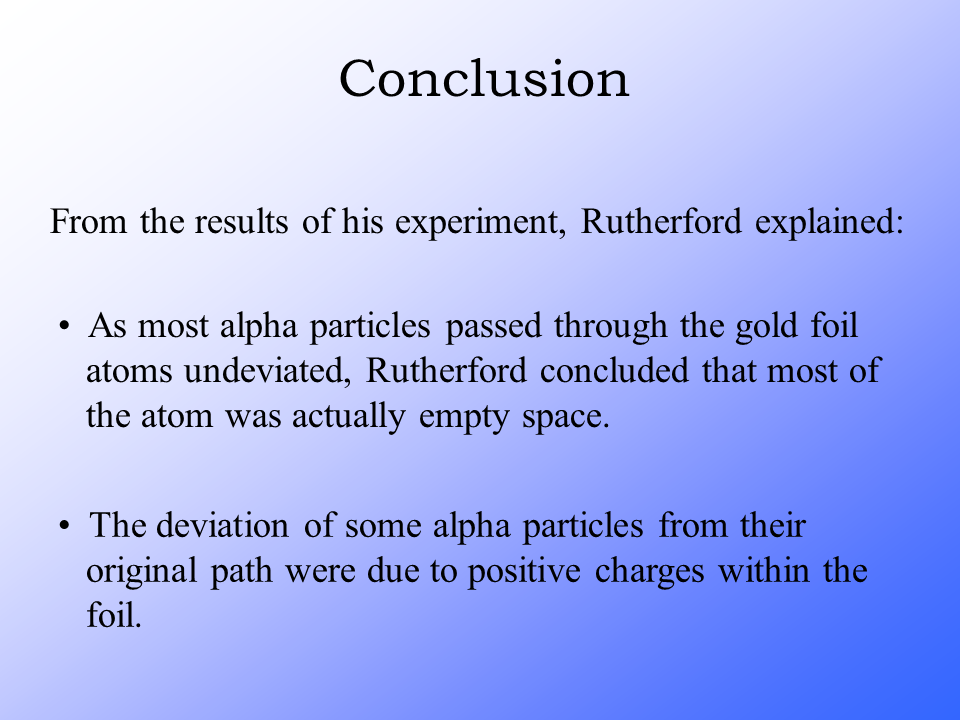

Slide 8

Slide 9

Slide 10

Slide 11

Slide 12

Slide 13

Slide 14

Slide 15

Slide 16

Slide 17

Slide 18

a

a

a

a

a

a

Slide 19
