Name That Deformation

Page
1

Slide 1

Name That Deformation

A new and exciting game for the well-informed geology student!

Slide 2

The idea in this game is to look over the deformation pictured, and try to identify it from the vocabulary in the chapter on geologic deformation. Let’s begin by clicking anywhere on this page for our first example.

Slide 3

This is an upward fold of strata; found in the Alps.

Slide 4

Did you say “anticline”?

Slide 5

What type of fault is this? Strike-slip or dip-slip?

Click here for a hint!

Slide 6

Which one shows vertical displacement?

Slide 7

Hope you said “dip-slip”!

Slide 8

Erosion of upwarped strata like this forms what?

Slide 9

That’s a “dome”!

Slide 10

Whether it’s eroded or not, it’s still called a……………….

Slide 11

Slide 12

Syncline

Slide 13

What’s the other name for a rift valley like this?

Slide 14

Graben

Slide 15

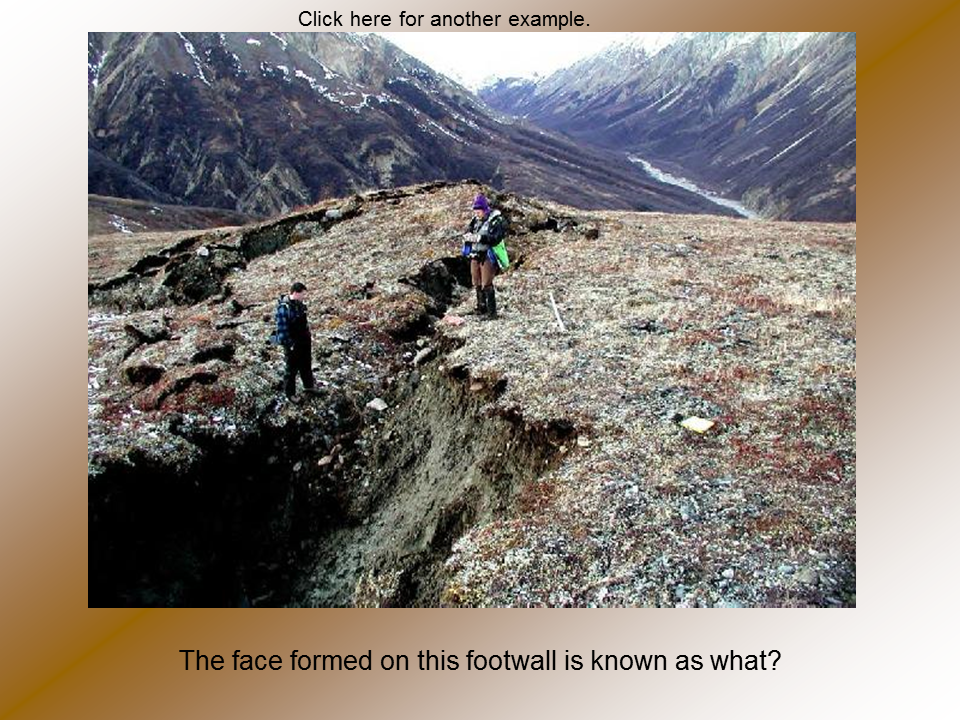

What kind of fault would end up like this – one side thrust up over the other?

Slide 16

Thrust fault

Slide 17

Fold, fault or fracture?

Slide 18

Fold, of course!

Slide 19

What would you call a single-limbed fold like this?

Click here for a hint.

Slide 20
