Earthquake

Page
2

An earthquake's point of initial rupture is called its focus or hypocenter. The epicenter is the point at ground level directly above the hypocenter.

Slide 10

Slide 11

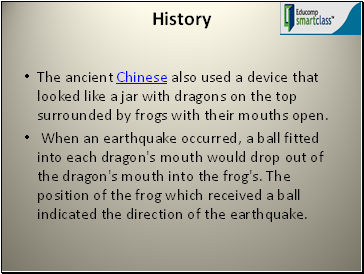

History

The ancient Chinese also used a device that looked like a jar with dragons on the top surrounded by frogs with their mouths open.

When an earthquake occurred, a ball fitted into each dragon's mouth would drop out of the dragon's mouth into the frog's. The position of the frog which received a ball indicated the direction of the earthquake.

Slide 12

Slide 13

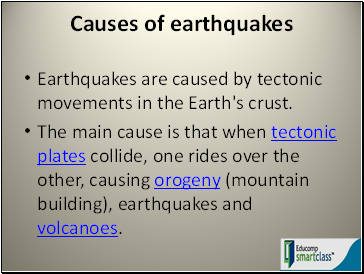

Causes of earthquakes

Earthquakes are caused by tectonic movements in the Earth's crust.

The main cause is that when tectonic plates collide, one rides over the other, causing orogeny (mountain building), earthquakes and volcanoes.

Slide 14

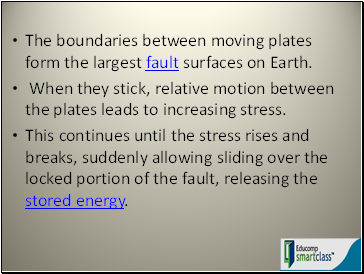

The boundaries between moving plates form the largest fault surfaces on Earth.

When they stick, relative motion between the plates leads to increasing stress.

This continues until the stress rises and breaks, suddenly allowing sliding over the locked portion of the fault, releasing the stored energy.

Slide 15

Slide 16

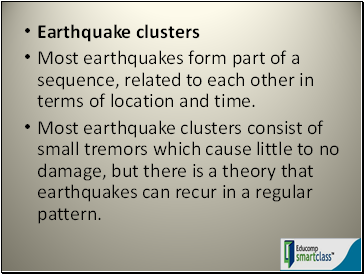

Earthquake clusters

Most earthquakes form part of a sequence, related to each other in terms of location and time.

Most earthquake clusters consist of small tremors which cause little to no damage, but there is a theory that earthquakes can recur in a regular pattern.

Slide 17

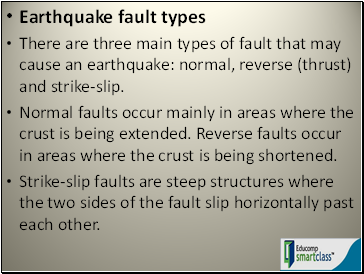

Earthquake fault types

There are three main types of fault that may cause an earthquake: normal, reverse (thrust) and strike-slip.

Normal faults occur mainly in areas where the crust is being extended. Reverse faults occur in areas where the crust is being shortened.

Strike-slip faults are steep structures where the two sides of the fault slip horizontally past each other.

Slide 18

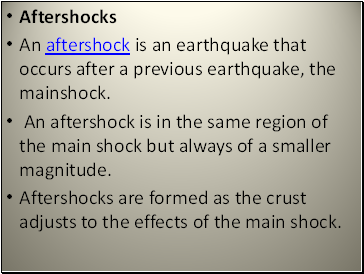

Aftershocks

An aftershock is an earthquake that occurs after a previous earthquake, the mainshock.

An aftershock is in the same region of the main shock but always of a smaller magnitude.

Aftershocks are formed as the crust adjusts to the effects of the main shock.

Slide 19
